UVP Mineralight® Series UV Lamps
Powerful Ultraviolet Shortwave Quartz Grid, Midwave, and Longwave Tube Lamps


Company Seven offers the complete broad selection of ultraviolet (UV) sources of made by UVP including the Display and Bench series
UV lamps that in their catalog include the 225D Mineralight® series and shortwave UVGD-68 Mineralight® Quartz Grid Lamps. To avoid any confusion on the part of our customers, we catalog these lamps under both links for the Mineralight® and Display and Bench series lamps. In order to round out our coverage of the Mineralight® models, here we include the other lamp in the series the shortwave R-52G Mineralight® Quartz Grid Lamp, a desktop style lamp.

The Mineralight® series UV lamps are engineered to provide a more uniform UV coverage either more intense and or over a comparatively wider area than that provided by the High Intensity series, the EL series, or other smaller cousins. The Mineralight® lamps are AC powered and emit either one wavelength of UV, or with the UVLS-225D the user can select either of two wavelengths of UV. These are heavier yet easily manageable, and robustly constructed. These are typically installed into a display cabinet, or suspended over the object to be illuminated. These are often found in a laboratory setting where intense shortwave is used for sterilization, to destroy bacteria, for photochemistry, phosphorescence, and in lapidary applications.


R-52G Mineralight® Quartz Grid Lamp

UVP R-52G shortwave quartz grid Lamp (60,439bytes) The R-52G is among the few UVP lamps that differs from most other UV lamps since its source is a 254nm quartz grid element. Grid lamps are mercury photochemical lamps with glass tubing bent back and forth to form several parallel bars, typically in either a rectangular or square form. They are designed for applications where intense shortwave 254nm UV energy is needed; the grid element is formed so that it concentrates the energy across the specific area required. The illumination provided is uniform across the gird, without hot spots or diminished areas of output.

Right: UVP R-52G high output shortwave quartz grid lamp (35,793 bytes).

An additional benefit is that these lamps generate less heat that a comparable coverage tube array. Their comparatively high power output, cooler operation, combined with their extreme longevity makes these lamps an idea choice for illuminating displays over a long term, curing epoxies, removing trace amounts of organic contaminants, electronic component cleaning, ozone generators, erasing Eproms and other scientific and environmental uses. These lamps may require up to five minutes of warm up time to reach full output capacity.

The R-52G output intensity is typically 1250 µW/cm2 at six inches from the filter.

All display lamps are AC powered and plug into a conventional power outlet. Each is turned on and off by means of a single toggle switch. Most lamps turn on nearly instantaneously, like a household fluorescent lamp, and reach their peak of UV emissivity in seconds. The UVGD-69 reaches its peak intensity after a warm up period of about five minutes.

UVP R-52G Mineralight (16,104 bytes) The form of the lamp, its size, weight, and its power source will often impose limits about how and where it may be employed. The lamp may be a portable design capable of operating from battery power and able to be hand carried, or the lamps may be a desktop or much larger (up to 49.6 inches) and heavier (up to 20 lb.) unit best suited for installations into cabinets. We characterize the degrees of portability as: pocketable, compact, handheld, desktop, and display. We classify the R-52G as a desktop unit, this is in part due to its heavier ballasted arrangement.

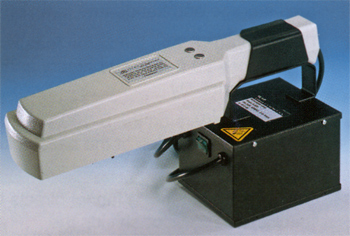

Left: R-52G Mineralight® grid lamp attached sideways to its ballast (24,051 bytes).

Ballasted lamps rely on either a separate transformer ballast chassis connected to the lamp by a cord, or some incorporate a self-ballasted bulb. The ballast is required to transform and regulate the AC current to start and then drive the grid. The ballasted lamps with an external transformer base will usually incorporate a brace upon which the lamp may be stored as is shown in the image at left. This ballast results in a lamp that may be more than twice as heavy as a conventional AC tube lamp, but the ballast is required to transform the AC current so that it can light the gas in the grid.

The dimensions of the lamp is: R-52G Lamp: 7.8H x 16L x 7.8W inches (198 x 406 x 198mm), weight 9.5 lbs. (4.3 kg)

Form Wavelength Power Model Replacement Tube/Grid Replacement Filter
Desktop 254 AC R-52G 77-0002-02 98-0004-03




UVP UVGD-68 shortwave quartz grid Lamp (35,793 bytes) 225D Mineralight® and UVGD Mineralight® Lamps

Right: UVP UVGD-68, a high output shortwave quartz grid Display series lamp (35,793 bytes).

Most of these are higher intensity AC powered lamps that incorporate multiple tubes so that the user can work in one or either of two wavelengths of the ultraviolet: 254nm, or 365nm, or 254 and 365nm. At first glance a UV tube lamp such as the UVL-225D Mineralight® resembles a conventional fluorescent fixture with two or more tubes. The lamp may have a wider profile when it incorporates a grid element. The UVGD-68 differs from the other lamps in this series since its source is a 254nm quartz grid element; the 'G' in it model code indicates this is a grid lamp. Grid lamps are mercury photochemical lamps with glass tubing bent back and forth to form several parallel bars, typically in either a rectangular or square form. They are designed for applications where shortwave 254nm UV energy is needed. The Grid Lamp can be formed so that it concentrates the energy into the specific area required. The illumination provided is uniform across the gird; without hot spots or diminished areas of output. And these generate less heat that a comparable coverage tube array. Their comparatively high power output combined with their longevity makes these lamps an idea choice for illuminating displays over a long term, curing epoxies, removing trace amounts of organic contaminants, electronic component cleaning, ozone generators, erasing Eproms and other scientific and environmental uses. These lamps may require up to five minutes of warm up time to reach full output capacity.

Each 225D series lamp will incorporate either two 25 watt tubes or a 254nm quartz grid element. The UVSL-225D is a a multi wavelength ultraviolet lamp that can emit either of two wavelengths of ultraviolet light either 254nm or 365nm illumination.

All display lamps are AC powered and plug into a conventional power outlet. Each is turned on and off by means of a single toggle switch. Most lamps turn on nearly instantaneously, like a household fluorescent lamp, and reach their peak of UV emissivity in seconds. The UVGD-69 reaches its peak intensity after a warm up period of about five minutes.

UVP UVL-225D Mineralight (16,104 bytes) The dimensions of these lamps are:

    225D Lamps: 18.5 x 4.5W x 3.5H inches (470 x 114 x 89mm), weight 10 lbs. (4.6 kg)

    UVGD-68: 18.5 x 4.75W x 5H inches (470 x 121 x 127mm), weight 10 lbs. (4.6 kg)

Left: UVL-225D Mineralight® lamp (16,104 bytes).

Form Wavelength(s) Power Model Replacement Tube/Grid Replacement Filter
Display Installation/
Germicidal
254 AC UVGD-68 77-0001-04 38-0006-04
Display Installation/
Germicidal
254 AC UVS-225D 34-0073-01 38-0207-01
Display Installation 302 AC UVM-225D 34-0072-01 38-0207-01
Display Installation 365 AC UVL-225D 34-0060-01 38-0207-02
Display Installation 254 and 365nm AC UVLS-225D 34-0060-01 & 34-0073-01 38-0207-01


Longevity

Company Seven can provide customers with information about lamp longevity upon request. This is usually expressed in terms of continuous hours of operation. While it is usually a simple matter to replace a UV lamp bulb, and we provide instructions with each lamp about how to do so, longevity is of a concern when the lamp is to be used installed into some hard to access location where it may be inconvenient to replace the bulb. So whenever time or labor costs to change a bulb are factors in the decision making process then we recommend:

  • some UV bulbs have service ratings as short as 450 to 2000 hours, so particularly for mission critical uses (law enforcement forensics, critical experiments, prospecting expeditions) keep replacement tubes or bulbs close at hand. Order at least one spare bulb to keep on hand for every one to three lamp units in active use.

  • Shortwave filters are subject to deterioration due to solarization, as such these components need to be replaced periodically. Depending on the application, you can expect to attain a useful operating lifetime of as little as 500 hours, or more typically 1,000 hours or maybe longer. The best way to know the condition of this component is to employ a radiometer to periodically measure the lamp output; for this we offer the optional UVX Digital Radiometer. Lacking a radiometer* you may be able to detect the deterioration subjectively by inspecting the display looking for a reduction in the fluorescence of samples exposed to UV.

    * Whenever a shortwave lamp is employed in matters of health including sterilization and germicidal applications, biology research, then your facility should invest in the Radiometer.


Additional Reading:

Company Seven hosts numerous articles and users guides at our UVP Notes & Interesting Articles page and in our Library including:

  • UVP Lamps Overview, a review of UVP ultraviolet sources and their differences.

  • Mineralight Display Lamps Users Guide illustrated two page brochure describing the use of UVP 225D series AC-powered UV lamps. Includes explanations of how to change bulbs, and clean the components, warranty terms. UVP publication No. 81-0119-03 Rev. C. Download size is 424,896 bytes (in Acrobat Reader ".pdf" format).

  • Mineralight Handheld Grid Lamp Users Guide illustrated two page brochure describing the use of UVP R-52G UV grid lamp. Includes explanations of how to change bulbs, and clean the components, warranty terms. UVP publication No. 81-0018-02. Download size is 1,031,774 bytes (in Acrobat Reader ".pdf" format).

  • Solarization When many optical components are exposed to ultraviolet radiation they undergo changes that reduce their ability to transmit UV light, this phenomenon is called solarization. This is particularly a problem in those few elements that lose the ability to transmit UV rapidly. This three page illustrated article helps the reader to understand how solarization affects the different types of lamps. UVP Application Bulletin A-l 12, download size is 224,078 bytes (in Acrobat Reader ".pdf" format).

  • UVGD-68 Grid Lamp Users Guide four page brochure describing the use of UVP UVGD-68 series AC-powered UV grid lamp. Includes explanations of how to change the shortwave grid and filter, and clean the components, warranty terms. UVP publication No. 81-0019-02 Rev. E. Download size is 727,730 bytes (in Acrobat Reader ".pdf" format).



UV warning (4,464 bytes) WARNING Infrared and ultraviolet wavelengths are invisible to the human eye yet these electromagnetic waves bear energy and other information. So any structure that absorbs the light can be damaged by this energy; note how sunlight exposure tans the skin while prolonged exposure fades or breaks down materials. The photons of shorter wavelength carry greater energy therefore, these have the greater potential for causing biological damage. These wavelengths can penetrate the eye or skin cells and can produce heating and energy related biological changes that will modify or destroy cellular DNA; this is among the reasons why some UV light sources are used for germicidal (sterilizing) applications.

As amazing as it can be to explore the ultraviolet spectrum, this is not child’s play! For a good overview of working in the UV and explanations of proper precautions consult Ultraviolet Spectrum Primer, the illustrated article by Company Seven explaining the ultraviolet (UV) spectrum as it applies to photographing or imaging objects in the UV and about observing fluorescence, phosphorescence, and tenebrescence. The article explains the different portions UV spectrum including UV-A (long wave), UV-B (mid) and UV-C (short wave). This also goes into a discussion of imaging gear including lenses, films and filters. Then refer to our article Ultraviolet Personal Safety Gear.
