UV Cabinets Overview
bringing convenience and safety to your observing or imaging session


Cabinet C70/C71 (37,638 bytes) Since 1932 UVP has been involved in developing solutions for those who work in the ultraviolet portions of the spectrum. Our UVP products line include numerous lamp source of ultraviolet, we also sell the UVP Chromato-Vue® Observing Cabinets that bring convenience and safety to an ultraviolet observing or imaging session. The cabinets are self contained ultraviolet laboratories where a sample may be introduced through the curtain flap at the front and into the enclosure for visual observing or for imaging with a camera through the safe transparent window. This is similar in concept to the photographic light box, but optimized for ultraviolet applicatons.

These cabinets can be used as portable document verification or forensics stations, for studies of non-destructive testing, for evaluation of contaminants (lubricants, paints, etc.) and for mineralogy. Since ultraviolet light in the UV-C portion of the spectrum is over time lethal to many living organisms, any cabinet with a 254nm lamp becomes a portable germicidal/sterilization facility!

Right: UVP UV Observing Cabinet (37,638 bytes).
Click on image to see enlarged view (328,751 bytes).

The lightweight yet sturdy walls of the cabinet keep out undesired light (ambient visible, infrared from the Sun, etc.) while also protecting the observer from the ultraviolet energy. For comfort and safety there is a rubberized face guard at the observing port that allows one to peer into the chamber through a Contrast Control Filter, a window that appears clear and is transparent to visible light but that simultaneously blocks the ultraviolet portions of the spectrum. Of course one could close oneself in a darkened room and make the adjustments to best direct the ultraviolet source onto the target, but this can be time consuming and there remains some risk of exposure by the observer(s) to the ultraviolet light. But even with the appropriate personal ultraviolet safety gear this can be inconvenient; the purpose-built UV observing cabinet solves this for you!

The larger cabinets typically incorporate an AC powered white light to illuminate the object inside, and with either a built-in ultraviolet lamps or the capability to attach an optional UVP ultraviolet lamp onto a port. Some cabinets are compact and built to be field portable; these accept an optional battery or AC powered UVP portable ultraviolet lamp.

Among the design features of these cabinets is the capability to remove the floor panel and place the cabinet onto a suitable UVP Transilluminator. The Transilluminator is an illuminating platform that incorporates a flat window below which are ultraviolet and or other lamps. These AC powered devices were originally developed to provide backlighting for DNA gels however, the Transilluminator can be used for studies of any transparent subject, or to backlight opaque objects so that their perimeter areas between the front and rear of a sample may be more clearly studied.

Any of these cabinets can be used just as well in a laboratory setting or at home.


What Is Going On Inside?

UVP Cabinet C-10P shown with optional UVSL-26P Lamp on at 365nm (33,312 bytes) When some materials (fabrics, minerals, biological) are bathed in ultraviolet light then they fluoresce or phosphoresce, appearing to glow - giving off light and usually doing so in colors that will surprise and amaze the observer. The intensity of the returning visible color(s) from the sample depends on:

  • the degree of responsiveness of the sample to ultraviolet energy: longwave (UV-A), or midwave (UV-B), or shortwave (UV-C),
  • the spectrum of the ultraviolet source (UV-A, UV-B, UV-C),
  • the intensity of the ultraviolet source,
  • the distance between the ultraviolet source and the subject of study,
  • contrast and clarity are improved by eliminating stray light from sources other than the desired band of ultraviolet.

Right: visual port of UVP Mini Chromato-Vue® C-10P Observing Cabinet at Company Seven with UVLS-26P lamp on and set to 365nm (63,639 bytes).
Here the cabinet housed only a white sheet of paper, hence a bright deep blue reflectance through the visual port.
Click on image to see enlarged view (173,142 bytes).

These cabinets can be used as portable document verification or forensics stations, for studies of non-destructive testing, for mineralogy. Since ultraviolet light in the UV-C portion of the spectrum is lethal over time to many living organisms, any cabinet provided with 254nm becomes a portable germicidal/sterilization facility!

What And How You See It In A UVP UV Cabinet:

Sphalerite_cleiophane_natswlw (28,448 bytes)

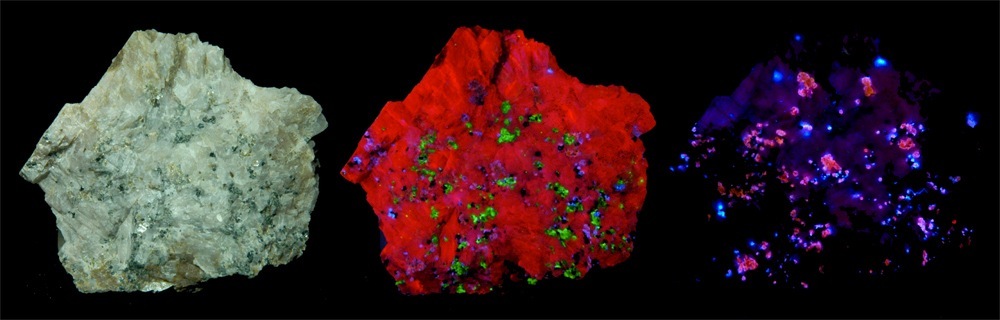

Above: images of Sphalerite in a Calcite Matrix with Willemite, taken in natural light (left), under shortwave ultraviolet lamp (center), under longwave (right).
That variety of Clieophane, as it is sometimes called, is Sphalerite that appears bluish under longwave light (and this case SW as well).
Exhibit courtesy of Company Seven (126,553 bytes). Click on image to see enlarged view (193,308 bytes).

Sphalerite_cleiophane_natswlw (126,553 bytes)

Above: images of of Norbergite mineral sample taken in natural light (left) and under shortwave ultraviolet lamp (right).
UV-C reveals wide zones of Norbergite as yellow grains, with Diopside and Graphite fluorescing pale blue - like a Milky Way of stars against a dusk sky.
Exhibit courtesy of Company Seven (126,553 bytes). Click on image to see enlarged view (193,308 bytes).

UVP Cabinets And Their Differences:

Cabinets differ in several respects, most notably:

  • Dimensions: this dictates how large a specimen may be handled

  • Lighting Arrangements:

  • Power Arrangements:

    The AC powered cabinets incorporate one male IEC 320-C14 plug receptacle that is powered by a wall outlet/mains via a standard AC power cord this may be a NEMA 5 to IEC 320-C13 cord in the USA for example; the appropriate power cord is provided for orders sent to within the USA. For orders going to overseas then the recipient of the system would need to buy locally an AC power cord with the a common IEC 320-C13-style female connector and with the appropriate mains male connector for their country at the other end of the cable. The cabinets that incorporate power distribution for optional UV lamps will feature female ICE 320-C13 female socket(s) for these lamps.

    • Model C-65, C-70G, C-71, C-75 Cabinets require AC power
    • AC powered cabinets are available in either 115 or 220 volt AC configurations*
    • Model C-65 Cabinet incorporates two switched AC power outlets for one or two optional EL Series 8 watt lamps:
      1. a Master Switch turns power on or off to both outlets,
      2. the user then can turn each lamp on or off by the lamp power switch.
    • Models C-10, C-10P, C-10E4, and C-10E6 Cabinet require AC power only for the optional lamp
    • Models C-15G Cabinet requires AC power only for the provided detachable UV lamps

    * the C-65 cabinet can easily be adapted for use in other countries by simply 1. change the internal white light bulb to the appropriate voltage (115, 220, etc.), then
    2. adapt the appropriate mains/wall plug with an adapter or with the appropriate power cord. Other than the light bulb, there are no other voltage-sensitive components in this cabinet.


Chromato-Vue® Series UV Cabinets:

UVP Cabinet C-70G (15863 bytes)

Chroma-Vue Cabinet Models C-70G and C-71G
incorporate white and UVL or white/UVL/UVS

UVP Cabinet C-75 (36,336 bytes)

Chroma-Vue Cabinet Model C-75
incorporates white, UVS and UVL lamps

UVP Cabinet C-65 shown with one optional EL Lamp attached (60,112 bytes)

Chroma-Vue Cabinet Model C-65 shown
with optional EL 8 Watt Lamp

Model Wavelength(s) UV Lamps/Watt White/UV Lamp Orientation Dimensions, Interior (inches) Dimensions, Exterior (inches) Weight Power
C-70 White, 254 and 365nm 2 + 2 / 15 watt ea. overhead and UV off to one side 21 W x 13 D x 8 H 23.4 W x 15.8 D x 13 H 22 lbs. AC
C-71G White and 365nm 4 / 15 watt ea. overhead and UV off to one side 21 W x 13 D x 8 H 23.4 W x 15.8 D x 13 H 22 lbs. AC
C-75 White, 254 and 365nm 2 + 2 / 15 watt ea. overhead and UV to both sides 17 W x 14 D x 6 H 19.75 W x 16.5 D x 15.75 H 18 lbs. AC
C-65 White, and optional UV EL Series lamp(s) 1 or 2 / 8w ea. overhead and UV to one or both sides 17 W x 14 D x 6 H 19.75 W x 16.5 D x 15.75 H depends on lamps AC*

* with portable battery powered UV lamps (with or without white light) then the C-65 can be employed in the field.


Mini Chromato-Vue® UV Viewing Cabinets:

UVP Cabinet C-10E4 (15863 bytes)

Mini UV Cabinet Model C-10E4
with optional EL Series 4W Lamp

UVP Cabinet C-10P (22,919 bytes)

Mini UV Cabinet Model C-10P
with optional UVx-26P Portable Lamp

UVP Cabinet C-15G shown with provided UV Lamp attached (22,919 bytes)

Mini UV Cabinet Model C-15G with
included PL Series UVGL-58 Lamp.

The Mini UV cabinets share the same lower section, the metal chassis with the front curtain, but differ in terms of the molded upper assembly since each model has an open port sized to fit a specific UV lamp. Each cabinet bears a sticker at the rear indicating which model it is to help the user know which model lamp will fit it. Unfortunately it is not possible to order one model of cabinet top panel to fit one model lamp, and then buy a second panel to accommodate a different lamp; one must buy two complete cabinets.

Model Wavelength(s) UV Lamps/Watt UV Lamp Orientation Dimensions, Interior (inches) Dimensions, Exterior (inches) Weight Power
C-10 optional UVP PL
Series
UV lamp
1 / 4 or 6w overhead off to one side 8.75 W x 10 D x 7 H 9 W x 10.5 D x 12 H depends on lamps --
C-10P optional UVP Portable 26P Series UV lamp 1 / 6w overhead off to one side 8.75 W x 10 D x 7 H 9 W x 10.5 D x 12 H depends on lamps --
C-10E4 optional UVP EL
Series
UV lamp
1 / 4w overhead off to one side 8.75 W x 10 D x 7 H 9 W x 10.5 D x 12 H depends on lamps --
C-10E6 optional UVP EL
Series
UV lamp
1 / 6w overhead off to one side 8.75 W x 10 D x 7 H 9 W x 10.5 D x 12 H depends on lamps --
C-15G include UVGL-58 PL Series 254 &365nm lamp 1 + 1 / 6w overhead off to one side 8.75 W x 10 D x 7 H 9 W x 10.5 D x 12 H 4 lbs. AC



Additional Reading: we host numerous articles and users guides at our UVP Notes & Interesting Articles page and in our Library including:

  • Ultraviolet Spectrum Primer, the illustrated article by Company Seven explaining the ultraviolet (UV) spectrum as it applies to photographing or imaging objects in the UV and about observing fluorescence, phosphorescence, and tenebrescence. The article explains the different portions UV spectrum including UV-A (long wave), UV-B (mid) and UV-C (short wave).

  • Mini Chromato-Vue® Viewing Cabinets: C-10 Series illustrated two page brochure describing the specifications and use of these compact portable cabinets and their use with optional lamp. UVP publication No. 81-0008-01 Rev F. Download size is 70,431 bytes (in Acrobat Reader ".pdf" format).

  • Chromato-Vue® Viewing Cabinets: C-65, C-75, C-70G and C-71 illustrated eight page brochure describing the specifications and use of these portable cabinets and their use with provided or optional lamps, or even with an optional Transilluminator in place of their bottom panel. UVP publication No. 81-0142-01 Rev E. Download size is 298,735 bytes (in Acrobat Reader ".pdf" format).


Ordering UVP Products

Company Seven stocks some of the more popular UVP lamp and cabinet products, and we accept orders for their other products by numerous means. You can also bring your UVP item to Company Seven for repair, or contact us to obtain user-serviceable items (bulbs, grids, etc.). The ways by which you may order products or parts are outlined at , or click here to read that page now.

Company Seven has not become convinced that on-line ordering is always beneficial for the customer, particularly when making a more complicated choice. While on-line ordering certainly is convenient and time effective for the merchant since they do not have to spend time with the customer, the customer is not always making the best choices when buying solely after reading what may be "propaganda" on line. The best ways to make the better choices are to either visit our showroom, or telephone 301-953-2000. This way you can obtain prompt and competent concise assistance which will address your particular needs and concerns.
