1/2” DIAMETER ROUND FILTERS, UNMOUNTED
|
|
|
Designed
for mounting in 2, 6, or 10 position filter sliders (stk. #17050, #17052,
#17053) or either of the dual filter wheels of the SSP-7 Precision Photometer
(stk. #17700).
|
|
|
17030
|
Neutral Density filter, 1%, recommended for SSP-7
photometer.
|
$50.00
|
|
17031
|
Johnson U (Ultra-Violet) filter.
|
$70.00
|
|
17032
|
Johnson B (Blue) filter. (transmission
curve)
|
$80.00
|
|
17033
|
Johnson V (Visual) filter. (transmission
curve)
|
$70.00
|
|
17034
|
Johnson R (Red) filter. (transmission
curve)
|
$70.00
|
|
17035
|
Johnson I (Infrared) filter. (transmission curve)
|
$70.00
|
|
17036
|
Clear filter window.
|
$30.00
|
|
17137
|
J-band filter, 1.25 mm CW, .28mm
BW, for SSP-4 infrared photometer.
|
$300.00
|
|
17138
|
H-band filter, 1.65 mm CW, .3mm BW,
for SSP-4 infrared photometer.
|
$300.00
|
|
17037
|
Wing MA 712 nm CW, 10 nm BW filter for SSP-3 or
CCD’s. (transmission
curve)
|
$130.00
|
|
17038
|
Wing MB
754 nm CW, 10 nm BW filter for SSP-3 or CCD’s. (transmission
curve)
|
$130.00
|
|
17039
|
Wing MI
1025 nm CW, 40 nm BW filter for SSP-3 or CCD’s. (transmission
curve)
|
$135.00
|
|
17041
|
Johnson U (Ultra-violet) filter for SSP-5
equipped with R4040 PMT.
|
$70.00
|
|
17042
|
Discontinued - specify Stk.# 17032.
|
|
|
17043
|
Johnson V (Visual) filter for SSP-5 equipped with
R4040 PMT. (transmission
curve)
|
$70.00
|
|
17045
|
Strömgren u
(ultra-violet) filter for SSP-5, SSP-7 or CCD’s.
|
$95.00
|
|
17046
|
Strömgren v (violet)
filter for SSP-5, SSP-7 or CCD’s. (transmission
curve)
|
$95.00
|
|
17047
|
Strömgren b (blue)
filter for SSP-5, SSP-7 or CCD’s. (transmission
curve)
|
$95.00
|
|
17048
|
Strömgren y (yellow)
filter for SSP-5, SSP-7 or CCD’s. (transmission
curve)
|
$95.00
|
|
17049
|
Hß narrow and wide band
filter set for SSP-5, SSP-7 or CCD’s. (transmission
curve)
|
$95.00
|
|
|
Set of two interference filters used to
study the strength of Hß absorption at 4861Å. The narrow band filter has a halfwidth (FWHM) of 3 nm and the
wide band filter has a halfwidth of 15 nm.
These two filters must be used together and are often used in conjunction
with the Strömgren four-color filter set.
|
|
|
17121
|
Tri-color R filter for PFE-1, requires
IR blocking filter (#17130 below) (transmission
curve)
|
$40.00
|
|
17122
|
Tri-color G filter for PFE-1, requires
IR blocking filter (#17130 below) (transmission
curve)
|
$40.00
|
|
17123
|
Tri-color B filter for PFE-1, requires
IR blocking filter (#17130 below) (transmission
curve)
|
$40.00
|
|
17125
|
Tri-color RGB filter set for PFE-1, requires
IR blocking filter (#17130 below)
|
$95.00
|
|
|
|
|
|
1” DIAMETER ROUND FILTERS, MOUNTED
|
|
|
These
filters are mounted in 1¼” threaded cell for use with many screw-in type
filter wheels or any adapter, which accepts 1¼” filter cells.
|
|
|
17130
|
IR blocking filter, 25.4mm diameter. (transmission
curve)
|
$95.00
|
|
17132
|
Johnson B filter, 25.4mm diameter, 7mm thickness.
(transmission
curve)
|
$120.00
|
|
17133
|
Johnson V filter,
25.4mm diameter, 7mm thickness. (transmission
curve)
|
$120.00
|
|

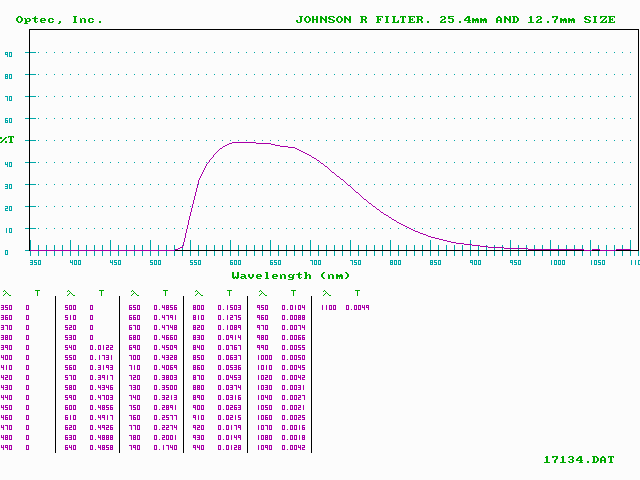

17134
|
Johnson R filter,
25.4mm diameter, 7mm thickness. (transmission
curve)
|
$135.00
|
|
17135
|
Johnson I filter,
25.4mm diameter, 7mm thickness. (transmission
curve)
|
$120.00
|
|
17136
|
Clear filter, 25.4mm
diameter, 7mm thickness.
|
$95.00
|
|
17149
|
Hß narrow and wide band
filter set, 25.4mm diameter. (transmission
curve)
|
$150.00
|
|
|
Set of two interference filters used to
study the strength of Hß absorption at 4861Å. The narrow band filter has a halfwidth (FWHM) of 3 nm and the
wide band filter has a halfwidth of 15 nm.
These two filters must be used together and are often used in
conjunction with the Strömgren four-color filter set.
|
|
|
2” DIAMETER ROUND FILTERS, MOUNTED
|
|
|
Glass
filters mounted in 48mm threaded cell for insertion into 2”eyepiece or
MAXfield/WideField/Ultra WideField.
|
|
|
17430
|
Violet light rejection filter, mounted in 48mm threaded cell. (transmission
curve)
|
$40.00
|
|
17431
|
#8 Pale Yellow, mounted in 48mm threaded cell. (transmission
curve)
|
$40.00
|
|
17432
|
Premium UV blocking filter with 435nm cutoff, mounted in 48mm
threaded cell.
|
$55.00
|
|
17433
|
#21 Orange, mounted in 48mm threaded cell. (transmission
curve)
|
$40.00
|
|
17435
|
#23A Light Red, mounted in 48mm threaded cell. (transmission
curve)
|
$40.00
|
|
17436
|
#47B Blue, mounted in 48mm
threaded cell. (transmission
curve)
|
$40.00
|
|
17437
|
#29 Deep Red, mounted in 48mm threaded cell. (transmission
curve)
|
$40.00
|
|
17438
|
#58 Light
Green, mounted in 48mm threaded cell. (transmission
curve)
|
$40.00
|
|
17439
|
#80A Medium Blue, mounted in 48mm threaded cell. (transmission
curve)
|
$40.00
|
|
17440
|
IR Blocking Filter, mounted in 48mm threaded cell.
(transmission
curve)
|
$95.00
|
|
17266
|
Optec Deep Sky Filter, mounted in 48mm threaded
cell. (transmission curve)
|
$195.00
|
|
|
|
|
|
2”
DIAMETER ROUND FILTERS, UNMOUNTED
|
|
|
50mm
filters designed for factory installation into our 5-position IFW filter
wheel or MAXfilter 3-position slider.
|
|
|
17229
|
Violet rejection filter, 50mm diameter, 2mm thick. (transmission
curve)
|
$40.00
|
|
17230
|
Clear window, 50mm diameter, 2mm thick.
|
$40.00
|
|
17231
|
#8 Pale Yellow, 50mm diameter, 2mm thick.
(transmission
curve)
|
$40.00
|
|
17232
|
#12 Yellow, 50mm diameter, 2mm thick. (transmission
curve)
|
$40.00
|
|
17233
|
#21 Orange, 50mm diameter, 2mm thick. (transmission
curve)
|
$40.00
|
|
17235
|
#23A Light Red, 50mmm diameter, 2mm thick.
(transmission
curve)
|
$40.00
|
|
17236
|
#47B Blue, 50mm diameter,
2mm thick. (transmission
curve)
|
$40.00
|
|
17237
|
#29 Deep Red, 50mm diameter, 2mm thick. (transmission
curve)
|
$40.00
|
|
17238
|
#58 Light Green, 50mm diameter, 2mm thick. (transmission
curve)
|
$40.00
|
|
17239
|
#80A Medium Blue, 50mm diameter, 2mm thick. (transmission
curve)
|
$40.00
|
|
17240
|
ND 0.6 (25% T), Neutral Density 25% transmission, 50mm dia. (transmission
curve)
|
$40.00
|
|
17242
|
Dichroic CYAN filter for 4-color imaging, 50mm dia., 2mm thick. (transmission
curve)
|
$55.00
|
|
17243
|
Dichroic MAGENTA filter, 4-color imaging, 50mm dia., 2mm thick. (transmission
curve)
|
$55.00
|
|
17244
|
Dichroic YELLOW filter, 4-color imaging, 50mm dia., 2mm thick. (transmission
curve)
|
$55.00
|
|
17252
|
Dichroic CYAN-IR
filter, 50mm dia, 4mm thick. (transmission
curve)
|
$115.00
|
|
17253
|
Dichroic MAGENTA-IR filter, 50mm
dia, 4mm thick. (transmission
curve)
|
$125.00
|
|
17254
|
Dichroic YELLOW-IR filter, 50mm
dia, 4mm thick. (transmission
curve)
|
$125.00
|
|
17245
|
Special CMY-IR
Subtractive Filter Set, 50mm dia.,4mm thick.
|
$295.00
|
|
17442
|
Dichroic RED filter for Tri-Color Imaging, 50mm dia., 2mm thick. (transmission curve)
|
$55.00
|
|
17443
|
Dichroic GREEN filter, Tri-Color Imaging, 50mm dia., 2mm thick. (transmission
curve)
|
$55.00
|
|
17444
|
Dichroic BLUE filter for Tri-Color Imaging, 50mm dia., 2mm thick. (transmission
curve)
|
$55.00
|
|
17246
|
Dichroic RED-IR filter for Tri-Color
Imaging, 50mm, 4mm thick. (transmission
curve)
|
$125.00
|
|
17247
|
Dichroic GREEN-IR filter, Tri-Color
Imaging, 50mm, 4mm thick. (transmission
curve)
|
$115.00
|
|
17248
|
Dichroic BLUE-IR filter for
Tri-Color Imaging, 50mm, 4mm thick. (transmission
curve)
|
$115.00
|
|
17445
|
Special RGB-IR
Tri-Color Imaging Filter Set, 50mm, 4mm thick.
|
$295.00
|
|
17241
|
Luminance filter with IR-Blocking, 50mm dia., 4mm thick.
|
$95.00
|
|
17255
|
Clear filter for use with LRGB-IR filters, 50mm dia., 4mm thick.
|
$55.00
|
|
17251
|
Precision Clear filter for use with Bessell set, 50mm dia., 5mm
thick, ½ wave, A/R coated.
|
$65.00
|
|
17250
|
Bessell specification U filter for photometry, 50mm dia., 5mm thick.
(transmission
curve)
|
$295.00
|
|
17446
|
Bessell specification B filter for photometry, 50mm dia., 5mm thick.
(transmission
curve)
|
$295.00
|
|
17447
|
Bessell specification V filter for photometry, 50mm dia., 5mm thick. (transmission
curve)
|
$250.00
|
|
17448
|
Bessell specification R filter for photometry, 50mm dia., 5mm thick.
(transmission
curve)
|
$250.00
|
|
17449
|
Bessell specification I filter for photometry, 50mm dia., 5mm thick.
(transmission
curve)
|
$150.00
|
|
17260
|
Custom Scientific
H-alpha filter, 656.3nm CW/ 3nm BW, 50mm dia., 5mm thick.
|
$475.00
|
|
17262
|
Custom Scientific O-III
filter, 500.7nm CW/ 3nm BW, 50mm dia., 5mm thick.
|
$475.00
|
|
17264
|
Custom Scientific
H-beta filter, 486.1nm CW/ 3nm BW, 50mm dia., 5mm thick.
|
$475.00
|
|
17267
|
Optec Deep Sky filter,
mounted in 50mm bushing, 4mm thick – NEW!!!
|
$195.00
|
|
|
|
|
|
CUSTOM OPTICAL SERVICES
|
|
17999
|
Custom transmission curve, 350nm to 1090nm. (No charge for filters priced $100 & up.)
|
$10.00
|
|
17299
|
Custom mount user-supplied 50mm (nominal) filter
into IFW 5-position wheel.
|
$10.00
|
|
