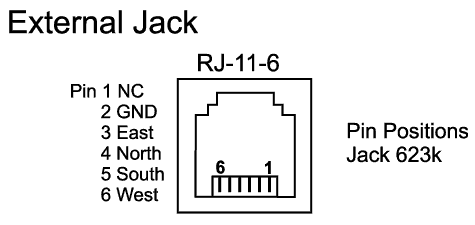

CCD Autoguider Port RJ-11 Connector Pin Assignments

This pinout is typical of that made popular by the SBIG CCD imaging and autoguiding systems.

This is also what is provided for these Astro-Physics controllers:

    GTOCP2 Control Box for GTO mounts
    GTOCP1 Control Box for GTO mounts
    Quartz Micro-drive Controller for previous QMD mounts
