AstroSystems Standard and Premium Quality

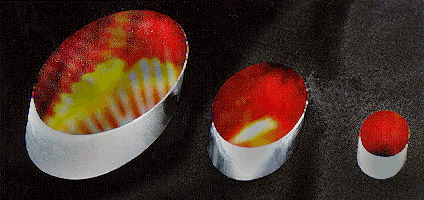

Elliptical Secondary Mirrors

  • AstroSystems elliptical secondary mirrors are made of fine annealed Pyrex blanks. These blanks are ground and then polished to the exact minor axis dimension.
  • Standard quality secondary mirrors are guaranteed to meet or exceed 1/8th wave flatness for sizes under 3", and 1/6 wave flatness for sizes over 3".
  • Premium quality secondary mirrors are hand picked and tested for flatness with a Zygo interferometer. Each flat is then numbered and supplied with a photo illustrating the interferometric fringes. Premium quality meet or exceed 1/10th wave flatness for sizes under 3", and 1/8th wave flatness for sizes over 3".
  • All AstroSystems secondary mirrors are then coated with reflective enhanced aluminum. This results in reflectivity of approximately 94-96%, and long coating life. These are then over coated to insure coatings endurance.
Standard and Premium Flats
    Size: 1.30 1.52 1.83 2.14 2.60 3.10 3.50 4.00
    Weight: 2 2 2 2 3 4 5 7


A, B, & C Dimensions for AstroSystems Spider and Elliptical Secondary Mirrors

Minor Axis A (in.) B (in.) C (in.) A+B (in.) A+B+C (in.) Weight(lbs.)
1.3 3.0 .75 3.25 3.75 7.0 .25
1.52 2.75 .75 3.5 3.5 7.0 .32
1.83 2.75 1.25 3.0 4.0 7.0 .34
2.14 3.35 1.25 2.7 4.6 7.3 .37
2.6 3.75 1.5 3.25 5.25 8.5 .55
3.1 4.3 1.5 3.5 5.8 9.3 .65
3.5 4.3 1.5 3.5 5.8 9.3 .85
4.0 5.0 1.5 3.0 6.5 9.5 1.0
4.25 5.5 1.5 3.0 7.0 10.0 1.1
4.5 5.5 1.5 3.0 7.0 10.0 1.25
5.0 6.0 1.5 3.0 7.5 10.5 1.35

AstroSystems DEW GUARD

This is an amazing secondary mirror heating system. The "Dew Guard" automatically senses both the air temperature and the secondary temperature, it will then compensate to maintain the secondary at a preset (adjustable) temperature above the ambient air temperature.

Dew Guard gently warms the secondary at 3-4 watts when on "Full"; it has 8 evenly spaced contact points for optimum thermal distribution. The solid state design consumes power only while operating; this can be furnished from any external 12 volt dc power supply, or you can run on a 9v battery in a pinch.

  • DG-1 for 2.4" to 3.1" minor axis, Weight 1 lb.
  • DG-2 for 3.5" to 6" minor axis, Weight 1 lb.
